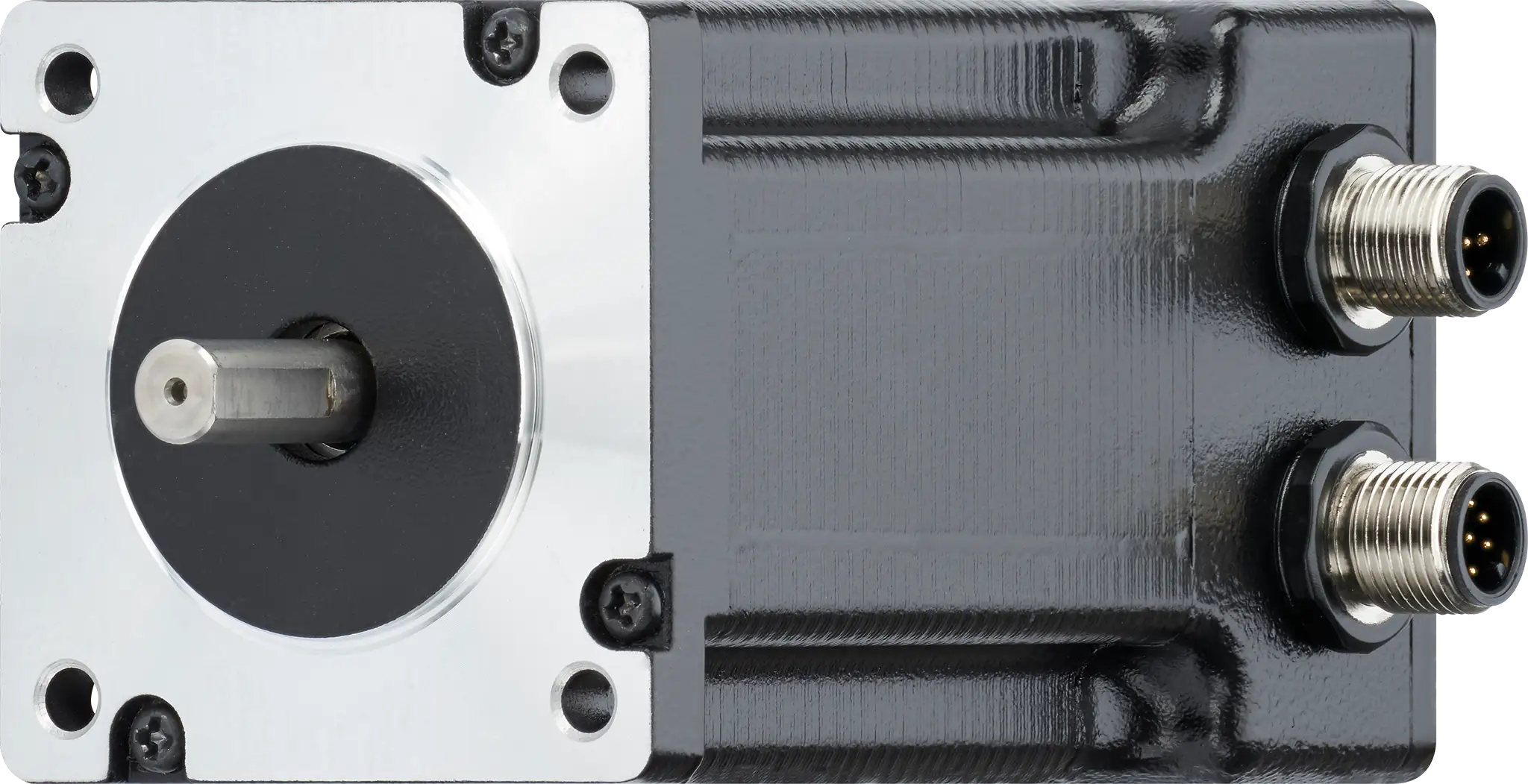

drylin® E stepper motor with connector and encoder, NEMA24

Installation size: NEMA24/flange dimension 60mm
Protection class: Motor housing IP65 (shaft seal IP52)

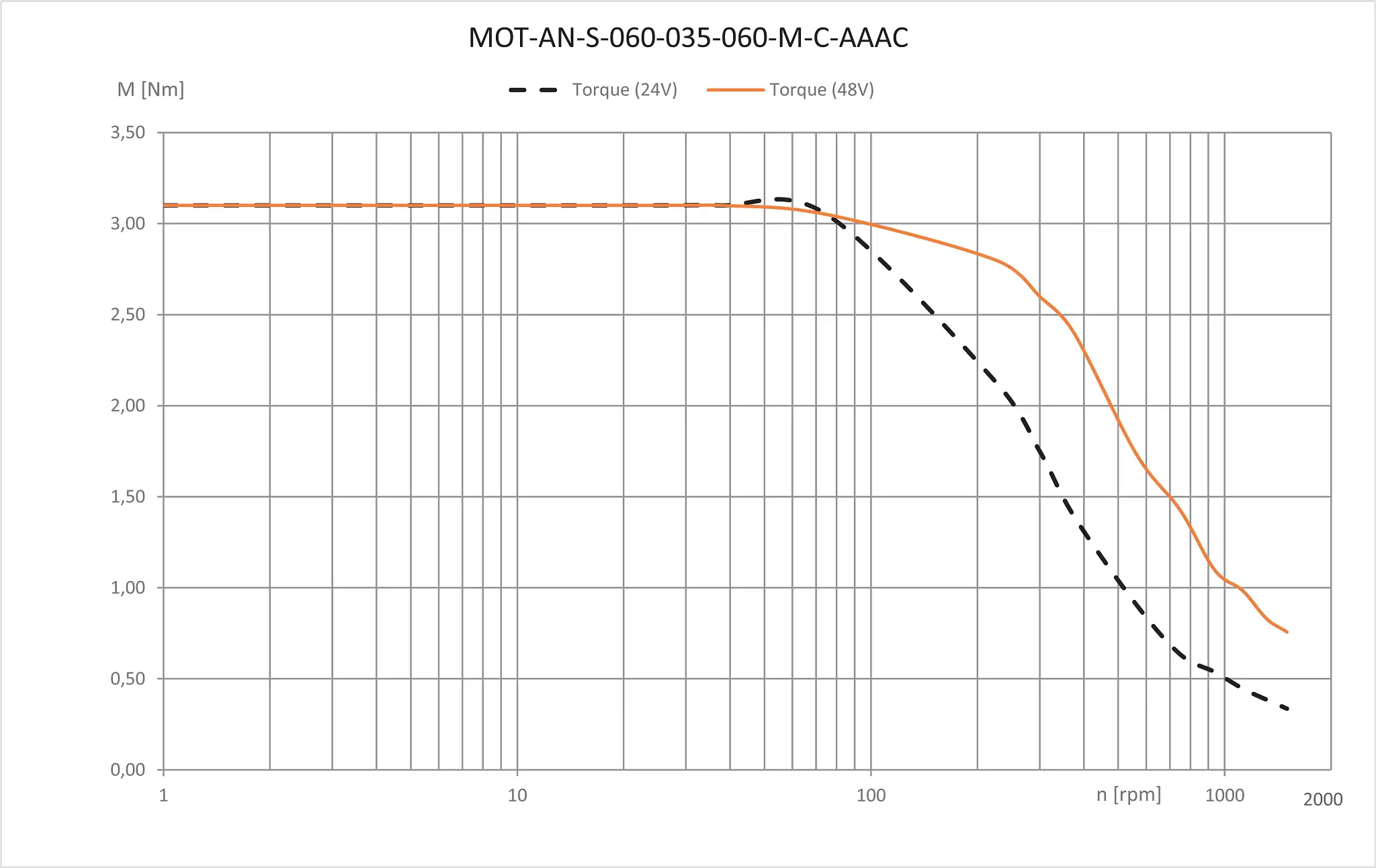

Holding torque: 3.50Nm
Rated current: 4.20A

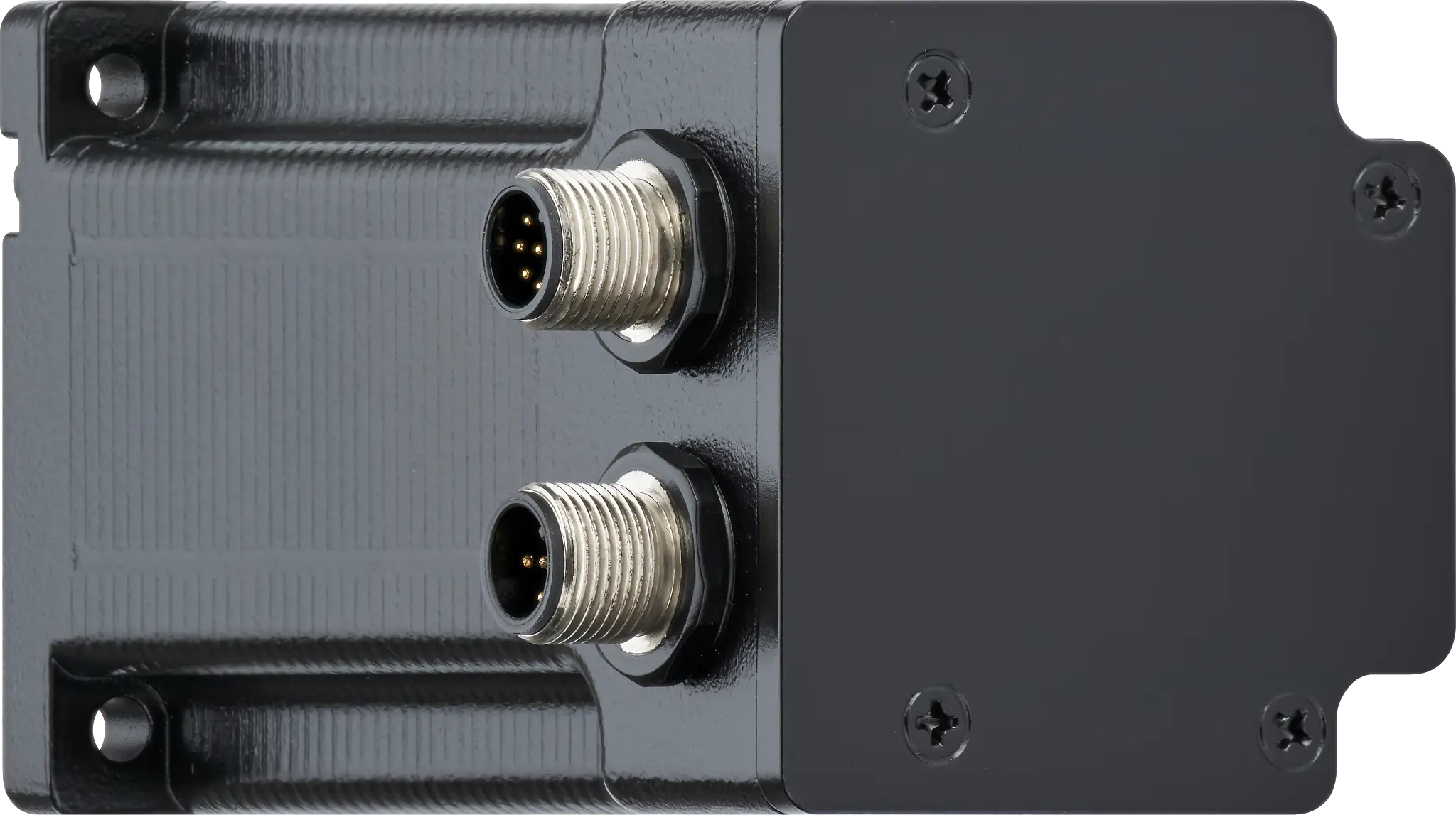

Motor connections: Metric M12 connectors

drylin® E stepper motor with connector and encoder, NEMA24

NEMA24: power motor in medium installation size

A development extension of the typical NEMA24 with nearly twice the torque. The assembly dimensions are identical to the NEMA23, allowing many applications.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

The connector interface provides a high IP65 protection level (IP: International Protection). The higher the IP rating, the better the motor is protected from the ingress of dirt and water.

The encoder sends signals from the motor to the motor control. The encoder verifies that the required linear motion has occurred precisely as required. Encoder = increased machine accuracy.
