New accessories for the E4Q

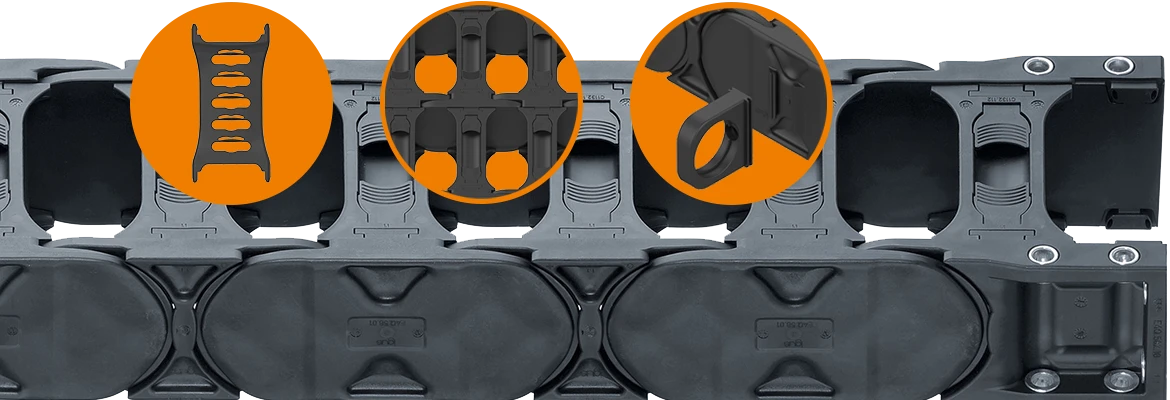

Expanding the E4Q modular kit

Guide many thin cables easily – Hi.9 separators for the E4Q.58

The new, asymmetrical Hi.9 separator can now be used for simple guidance of many thin cables in E4Q energy chains. Narrow chambers can be easily formed by offsetting by 180°. The e-chain® is also very easy to open on one side, even when many separators are installed.

Send an Hi.9 separator query now

Technical data

Part No. for series	Asymmetrical separators	Universal middle plates	Universal side plates	Universal separators	Snap-in shelves (X = mm)
E4Q.34 / H4Q.34	34.9	34.21	34.22	34.23	S428.XXX
E4Q.44 / H4Q.44	44.9	44.21	44.22	44.23	S428.XXX
E4Q.58 / H4Q.58	58.9	58.21	58.22	58.23	S428.XXX
E4Q.82 / H4Q.82	82.9	82.21	82.22	82.23	S428.XXX

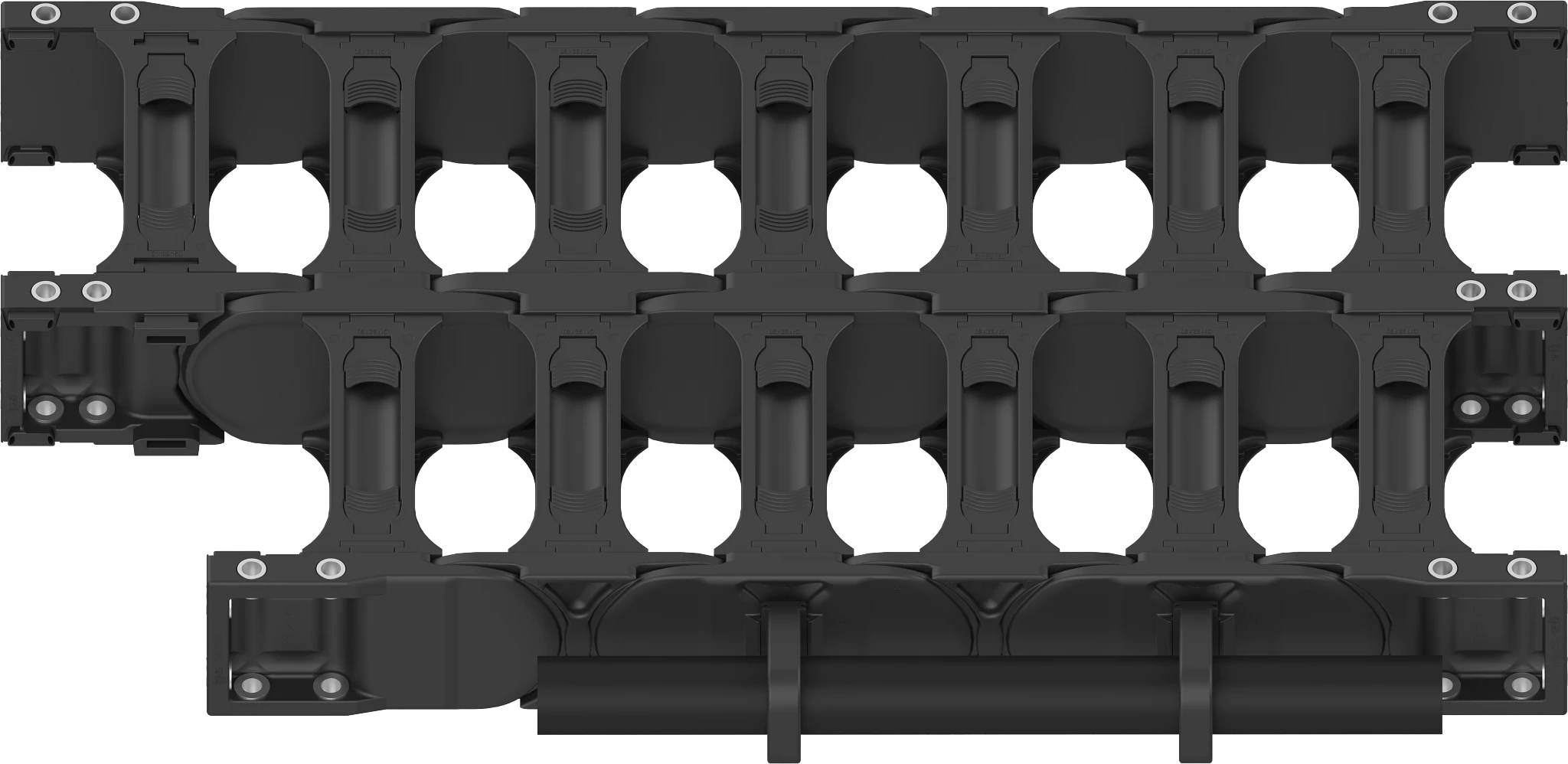

Extend the e-chain easily – extension link for the E4Q.58

The extension link can be used to easily extend an e-chain configuration in order to guide a large number of cables or especially heavy cables in one chain.

Send an extension link query now

Product range:

Part No. extension link

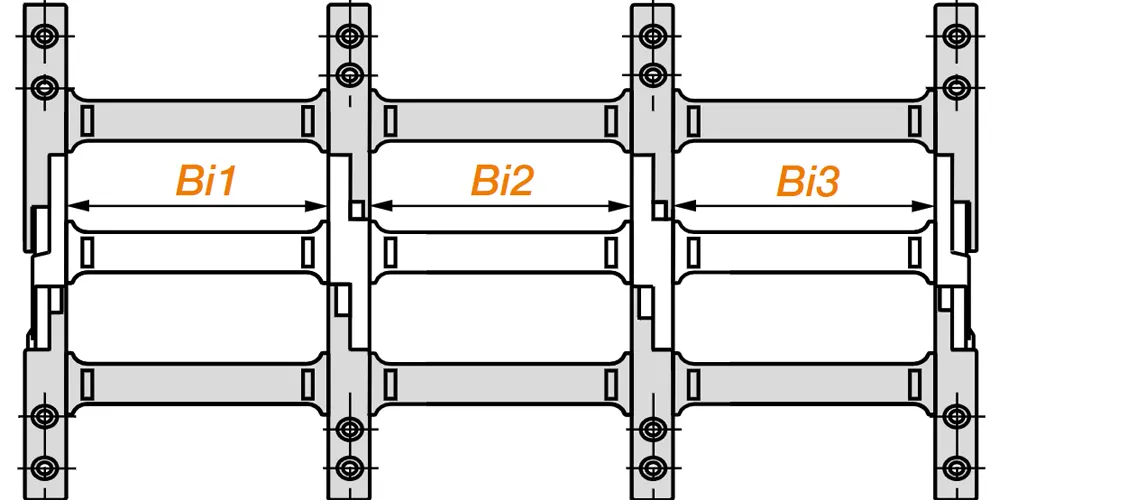

E4Q.58.Bi1/Bi2/Bi3.R.0

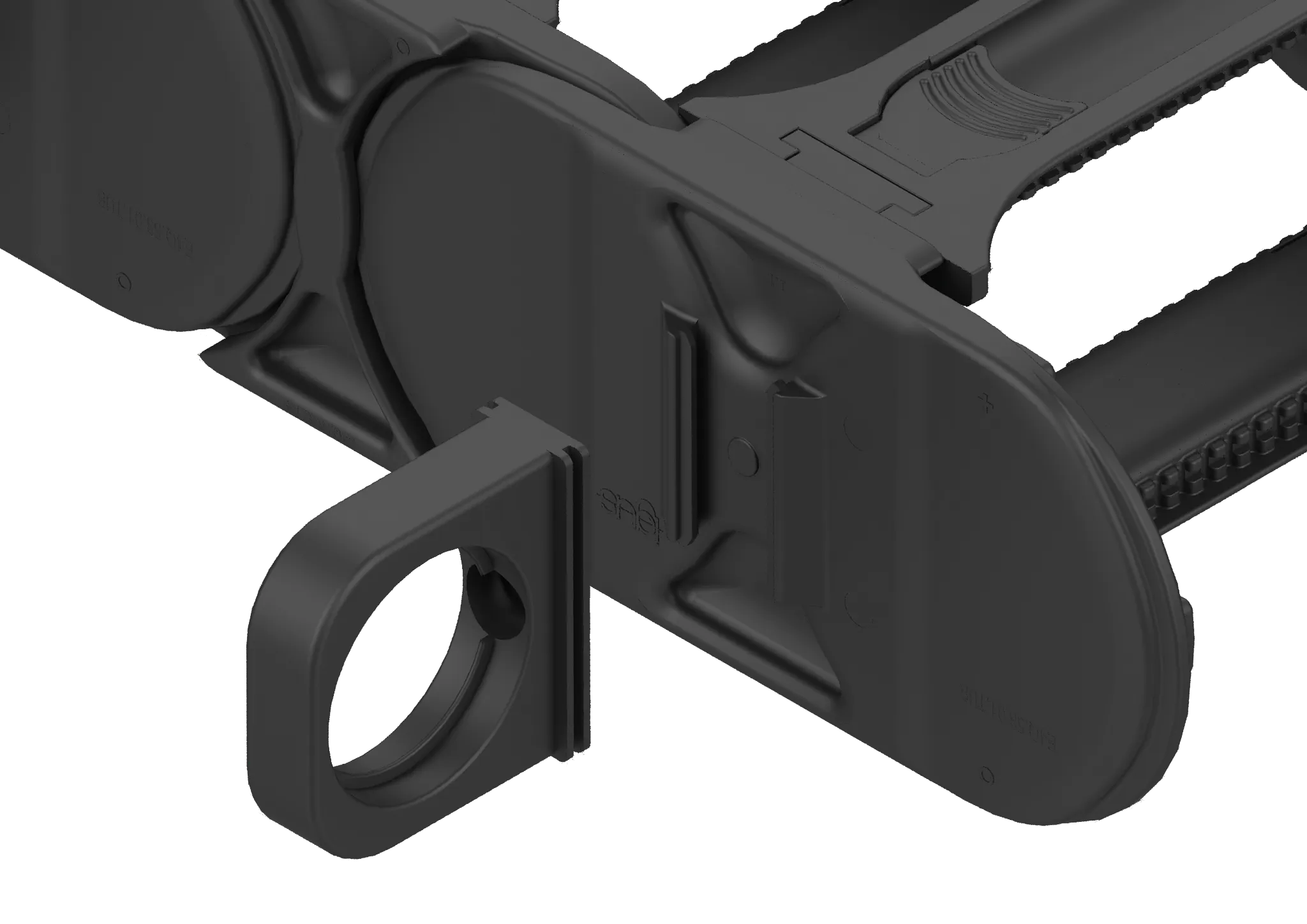

Simple guidance parallel to the chain – TUB link for the E4Q.58

Guide additional cables, hoses, or corrugated tubes parallel to an existing e-chain. Retrofitting is easy – just install PMACLIP supports. Sizes of 17-48mm.

Send a TUB link query now

Product range:

Part No. TUB
Outer link right*

Part No. TUB
Outer link left*

Part No. TUB
Outer link on both sides

For nominal width NW
ø [mm]

E4Q.58.XXXTUBR.150.0

E4Q.58.XXXTUBL.150.0

E4Q.58.XXXTUB.150.0

17/23/29/36/48

*Viewed from the fixed end

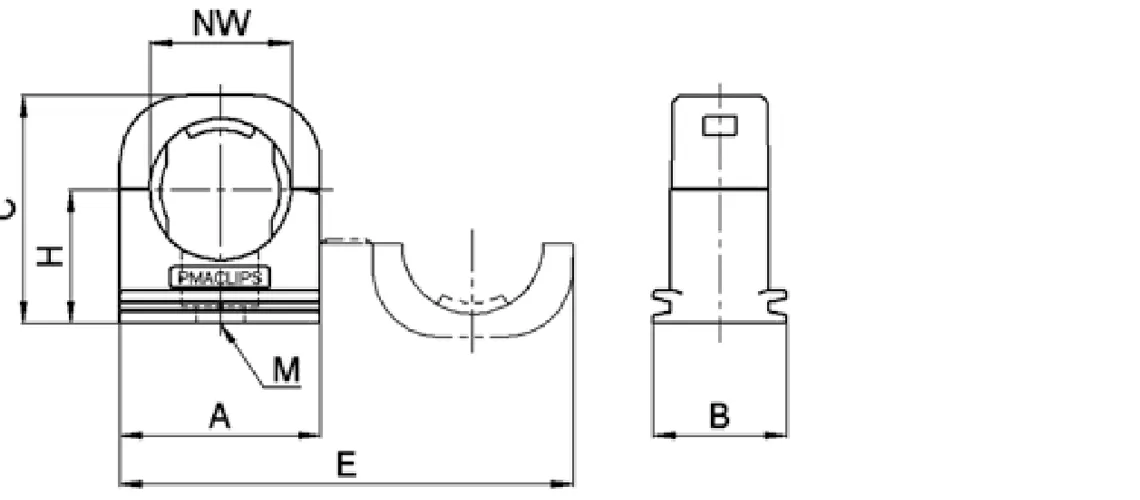

Part No. PMACLIP	NW [mm]	A [mm]	B [mm]	C [mm]	H [mm]	E [mm]	M [mm]
I-BFH-17-0	17	30	20	34	20	68	M60
I-BFH-23-0	23	38.5	20	42	24	85	M60
I-BFH-29-0	29	45.5	20	56	31	99	M60
I-BFH-36-0	36	55.5	20	56	31	99	M60
I-BFH-48-0	48	67.5	20	68	37	143	M60

Tech up

Extended variability for many thin cables
Simply guide additional cables and/or realise higher
realise higher filling weight
For laterally guided cables and hoses

Cost down

Optimum use of the energy chain's interior
By using the extension link, you can do without an
additional energy chain
Quick replacement

Proof

Tried and tested a million times over: combination of the advantages of the separator Hi.3 (for guiding thin cables) and Hi.2 (easy opening with secure stand)
Further optimisation based on the popular E4 extension links, which are used successfully in numerous applications
TUB range for systems E4.1 and E4.1L, which has proven itself in numerous applications

Sustainability

Less material required thanks to effective use of interior space
Optimum exploitation of existing resources
Have your energy chain recycled at the end of its life cycle with the igus chainge recycling programme. Irrespective of the manufacturer.
