triflex® R retraction systems TRC TRE TRCF

For supplying energy to articulated robots – Prevents formation of loops


The global growth in automation for industrial production is leading to more and more complex robotic applications. Target cycle times are getting shorter and downtime must also be reduced. To provide reliable protection against premature system failure and downtime, we recommend using a triflex® R e-chain®, especially to bridge the last three rotating axes. The dynamic change in length that´results from the robot's movement is compensated by our triflex® R retraction systems. This constantly guides the igus® e-chain® in a controlled way to prevent the formation of loops in the robot's working area.

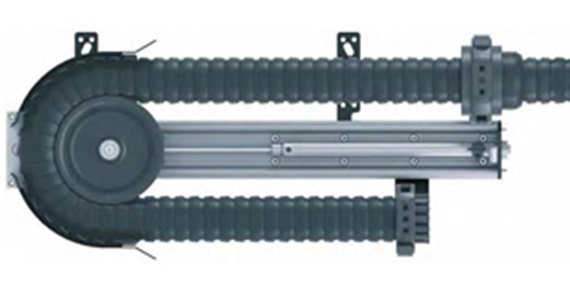

RSP

Pneumatic retraction system

For series TRC·TRE·TRCF with a ø-index of 60-125mm

For robots with a load capacity of approx. 50kg

Up to 780mm retraction length

For applications with a high fill weight

Almost constant retraction force over the complete travel

Standard pneumatic components

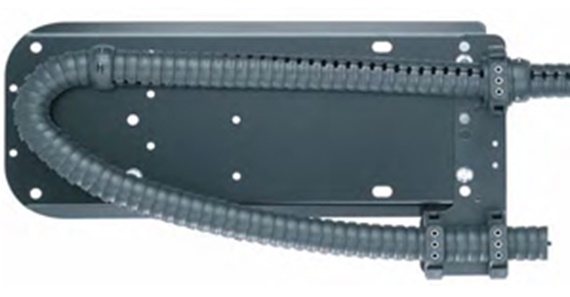

RS

Modular retraction system

For series TRC·TRE with ø-index 40-100mm

For robots with a load capacity from approx. 10kg

Up to 670mm retraction length

If no linear guide system is needed

For use with adverse environmental influences

Retraction force provided by integrated fibre-rods

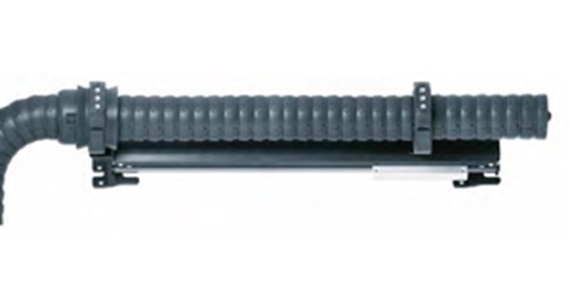

RSE linear

Linear, cost-effective retraction system

For the TRC·TRE·TRCF* series with 40-125mm ø-index

Special linear guide avoids tight bend radii

Up to 490mm retraction length possible

Simple, linear retraction without sags, fibre-rods, or guide rollers

Cost-effective

Maintenance-free igus® drylin® W linear unit

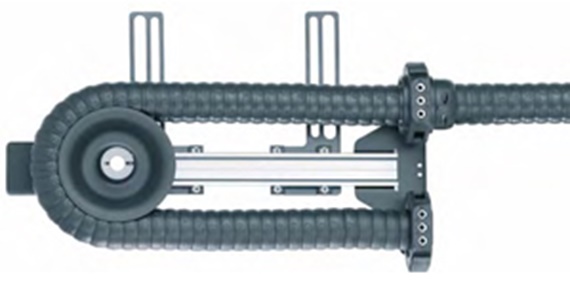

RSE

Cost-effective retraction system

For series TRC·TRE with a ø-index of 40mm

For small robots, very light

Up to 500mm retraction length

For highly dynamic movements

Cost-effective

Maintenance-free igus® drylin® W linear unit

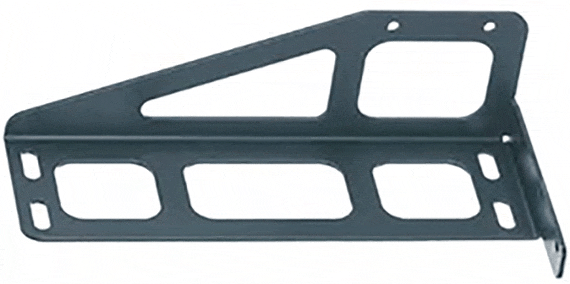

Adapter brackets

Adapter consoles for retraction systems

43 brackets from stock for many robot types

For all triflex® RSP, RS, and RSE modules

3D CAD data available online for download

Also for robots needing side-mounted installation

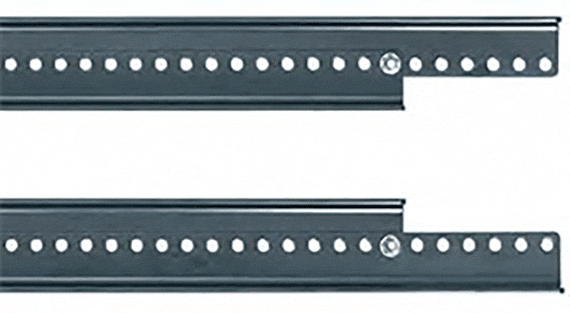

Adjustable retraction systems

Adjustment unit for retraction systems RSP and RS

Wide adjustment range of ± 250mm

Can be combined with igus® adapter consoles

Simplifies alignment for robot cells with restricted space


Selection aid for triflex® R retraction systems

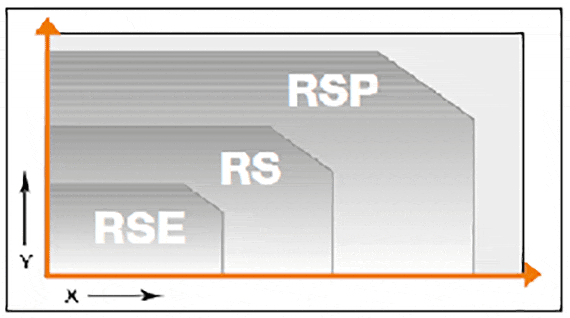

RS diagram X = Total e-chain® length
Y = Robot size

Possible Ø-index for triflex® R retraction systems

triflex® R
series
RSP
Ø index
RS
Ø index
RSE linear
Ø index
RSE
Ø index
TRC 60 - 125 40 - 100 40 - 125 40
TRE 60 - 125 40 - 100 40 - 125 40
TRCF 85 - 100 - 85 - 100 -
TRL* - - - -
TRLF* - - - -
* Retraction systems not available for this series

triflex® R Accessories:

Fibre rod modules

Custom solutions with directed pretension.

Universal mounting kit

Allows the fibre rod modules to be positioned anywhere on the robot arm.

Strain relief systems for large cross sections

Secure cable starin relief even for cables with a large cross section.

Gliding feed-throughs

With and without swivel bearing

Protectors

Extra safety under extreme operating conditions.

Heat protection shield

Protects from chips and metal spatter up to 600°C
UR clips

UR clips

triflex® R mounting brackets for universal robots

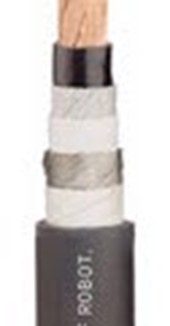

CFROBOT special cables

Special cables for a long service life in robot applications.
